This fully automatic frozen french fries plant is designed for medium and large-scale frozen french fries production. 6-8 people are enough to operate the complete french fries line from potato washing & peeling, french fries cutting & blanching, to french fries frying freezing & packing. High automatic, continuous production, simple operation.

We believe that every business is unique. With output capacities ranging from 300kg/h to 2000kg/h, our french fries machines are sure to suit the needs of most french fries manufacturers, whether you’re just beginning or are already an established french fries manufacturer. For a capacity of over 2000kg/h, we can also customize it for you.

With our professional team at your side, we guarantee you won’t have to worry about a thing. We’ll offer suggestions and customization for your french fries plant and be with you every step of project planning, design, layout, and installation, making sure we’re creating exactly the right french fries plant for your unique needs. You’ll benefit from the experience of our team of experts who have been designing and building french fries machines for decades years. Don’t hesitate to contact us with your requirements.

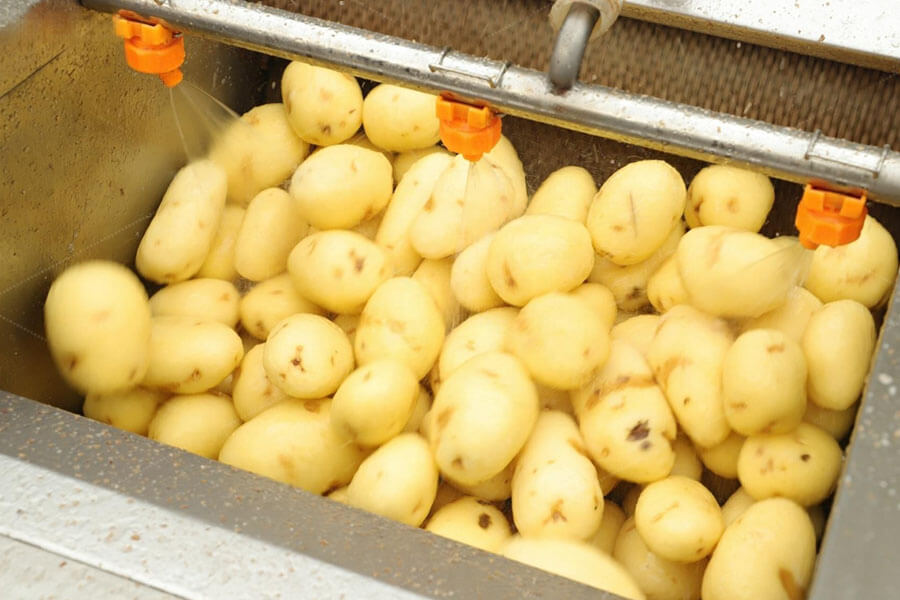

The potato washing peeling machines are equipped with nylon brush rollers and emery brush rollers that can wash and peel potatoes at a large capacity. 304 food-grade stainless steel, durable nylon brush rollers, easy to operate and maintain, high efficiency. Equipped with durable wheels, easy to move. Best choice for washing and peeling potatoes, sweet potatoes, carrots, and other root vegetables. Manual discharging type and automatic discharging type potato peeling machines are available for your choice.

2,000-3,000 kg/hr
Suitable for the large frozen french fries plant

• High work efficiency and strong stability.
• Continuous potato washing and peeling work.
• Siemens control motors. Potatoes are fed by a screw system.
• The Spiral discharge and spraying devices have strong cleaning ability and no damage to potatoes.
• Brush roller and spiral discharge are controlled individually.

700-2,000 kg/hr
Suitable for the small-scale french fries plant

• Suitable for washing and peeling kinds of root vegetables.
• It can do dry and wet cleaning, with flexible spray nozzles.
• SUS304 stainless steel frame. Top quality durable nylon brushes.
• Easy to operate, potato peeling time and speed are adjustable.
• A timer and alarm can be added for time setting.

• Continuous airflow french fries dehydrating work.
• It is the necessary equipment for the automatic frozen french fries production line.
• Usually equipped behind the vibration dewatering/deoiling machine for further dehydration and cooling that will ensure the crispness of french fries.
• Adopt turnover-type mesh belts and multiple high-pressure fans. High-efficient dewatering.
• Equipped with Siemens motors. The conveyor speed is adjustable.

• Equipped with elevators, and continuous french fries dewatering/deoiling work.
• Equipped with a shake-proof device. Stable working performance.
• Adopts the centrifugal principle. The dewatered french fries will be discharged from the bottom.
• Realize automatic operation from feeding, discharging, and conveying the dehydrated product to the next processing.
• Automatic digital control, electromagnetic brake, easy to operate, high efficiency.
• Suitable for the medium or large frozen french fries line.

• It is the necessary equipment for the automatic french fries production line.

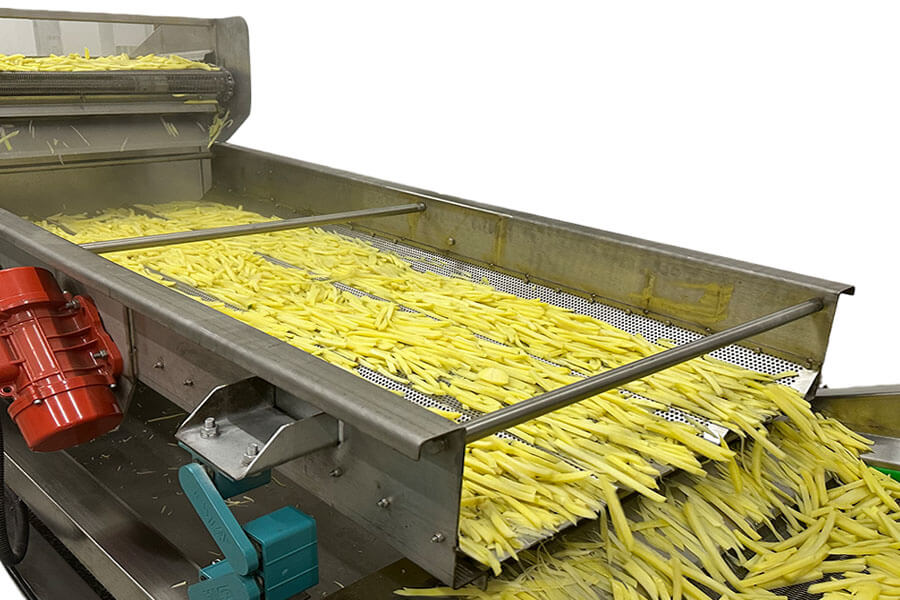

• Also called a linear vibration sieve machine. It removes the extra water or oil from french fries through high-frequency vibration.
• Wide applications. Suitable for the dewatering and sieving work for various vegetables and fruit.
• Easy installation and convenient operation. High efficiency.
• A water discharging plate is at the bottom

• Suitable for the small-scale french fries production line.
• Rotating speed: 500r/min. Capacity 300kg/h – 700kg/h
• The spinning time can be set up as per your need, also with delay buffering to protect the machine from damage.
• The machine has buckles at the four corners of the bottom, which can fix the machine on the ground.
• Can also be used to dewater various vegetables and fruit.

500-1,500 kg/hr
Suitable for the large-scale frozen french fries line

• Heating method: electric heating, gas heating, or electric + gas heating.
• High-capacity frying: Fry large quantities of french fries in a short time.
• Oil management system: Equipped with an oil filtration circulating system that removes impurities and extends the lifespan of the oil.
• Automatic frying system: Maintains the desired frying temperature and time, ensuring consistent and high-quality frying results.
• Safety features: Built-in fire suppression systems and automatic shut-off switches, that ensure safe operation and prevent accidents.
• Double layers mesh belt: The french fries are sandwiched between two belts, which makes the frying more uniform.
• Customizable options: heating source, and the width of the mesh belt.

50kg/h to 200kg/h
Suitable for the small-scale french fries line

• Heating methods: Electric heating and gas heating.
• Discharge type: Automatic discharge and manual discharge.
• Basket shape: Rectangle and round pot (with automatic stirring function)
• Automatic temperature control. The temperature can be set up to 300°C.
• Equipped with Oil-water separation filter system to collect the residue
• Wide applications. Suitable for frying various snacks, such as french fries, potato chips, nuts, chicken, etc
• Equipped with universal wheels for easy movement.

Special-designed french fries freezer for industrial-scale freezing of French fries. We offer IQF french fries instant freezer and batch-type french fries blast freezer for your choice. These freezers use advanced technology to freeze french fries quickly and efficiently in large quantities. Adopt 304 food-grade stainless steel. Designed to be hygienic and prevent the growth of bacteria, with features such as air filters and anti-microbial coatings.

200 kg/h – 500kg/h
Suitable for the large frozen french fries line

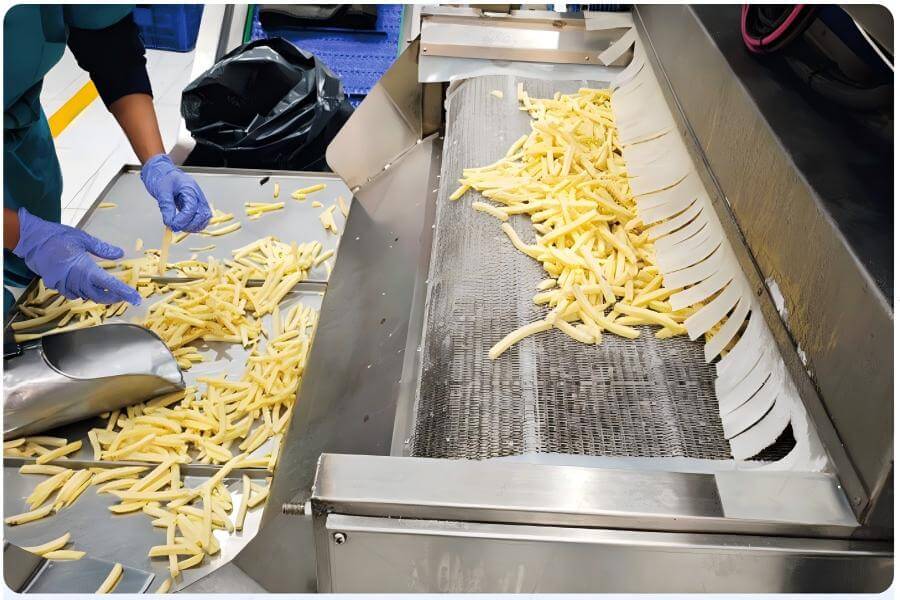

• Continuous freezing process: The french fries are conveyed through a series of freezing chambers on a conveyor belt. Achieve high-capacity french fries freezing.
• Precise temperature control: Able to freeze the french fries at temperatures as low as -40°C. Discharged french fries at -18°C.
• Well Integrated with other french fries machines: Allows for a seamless flow during french fries production.
• Automated controls and adjustable settings for temperature, airflow, and conveyor speed.
• Combined heat preservation library body. Efficient aluminum evaporator

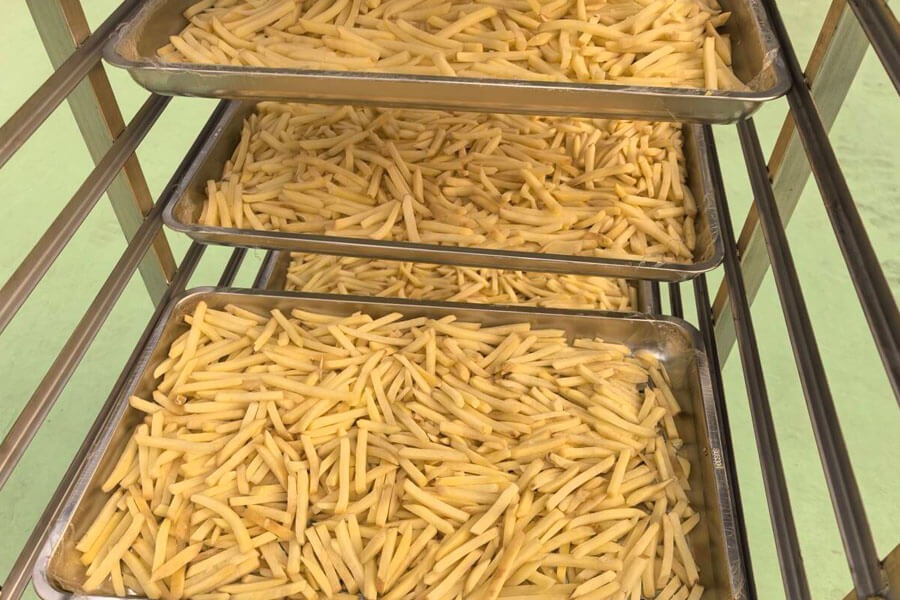

160 kg/batch – 800 kg/batch
Suitable for the medium and small frozen french fries line

• Freezing temperature: -30°C — -35°C
• Output french fries temperature: -18°C
• Freezing time: 30-50 minutes per batch
• Low initial investment. Affordable price.
• Customized design according to your needs.
• Wide application: Best choice for freezing various food products.
• No need for installation. Easy operation. Load and discharge french fries with trolleys.

French fries packing machines are equipment used to package french fries for distribution and sale. They are designed to work with a variety of bag sizes and can be customized to meet the specific needs of your french fries production line, and can be designed to include features such as labeling or barcoding.

70 bags/min
Suitable for the large french fries line

• Automatically complete the process of french fries feeding, measuring, bag making, filling, gas charging/exhausting, sealing, date printing, cutting off, and discharging.
• High measuring accuracy, high efficiency, and beautiful package appearance.
• Adopt a high-precision servo film drawing system, PLC control system, touch screen interface, photocell eye tracking, and digital temperature controller.
• The bag can be a pillow or a vertical type. The bag materials can be heatable packing films, such as OPP, CPP, OPP/PE, PET/PE, etc.
• Wide application. strong adaptability to packing french fries, potato chips, banana chips, and other food.

10 – 50 bags/min
Suitable for the medium and small french fries line

• Tabletop packing sealer machine and chain bucket packing machine for your choice.
• Both of the two french fries packing machines can fill vacuum gas into the bags if needed.
• Compact structure, elegant appearance, affordable price, easy to maintain.
• Bag materials can be nylon bags, PP, PC, PVC, HDPE, PS, etc.
• Wide application. Good choice for packing various foods.
• Serval models are available to meet different capacities. Please contact us for more information.

We are scaling up our business globally and this is a great opportunity for potential partners to join us to provide the best solution for your local french fries enterprise. You’d better consider being our partner if:

• You are distributors and resellers of food processing equipment.
• You are in the potato-related industry, food packing, or refrigeration industry.
• You are in the fast food industry or food service industry.
• You have friends or customers who want to enter the french fries business.
• You are interested in the french fries machines and want to be our sale representative in your local.

We provide our business partners with a competitive advantage as well as opportunities for the best french fries plant solutions that include french fries machines, french fries production training, and support throughout our global footprint. We will offer you improved efficiency, quality, and profitability.
